Job Hazard Analysis

Job Hazard Analysis

HazardAnalysisID: 24

Facility: Franklin DVAF

Assessed By: Thurwanger

Original Assessment Date: 2025-08-11

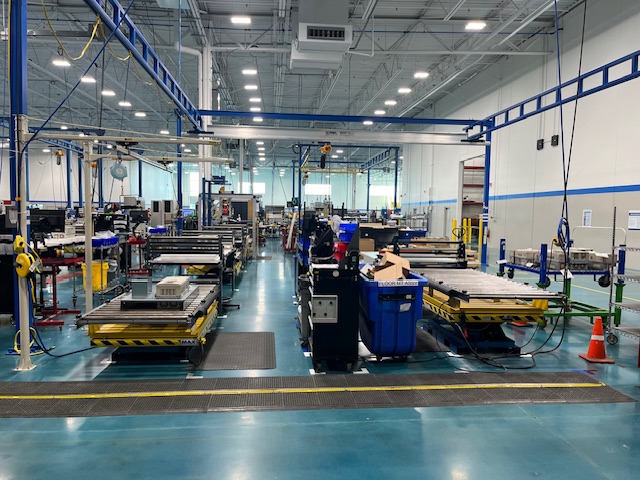

Work Area: Floor Mount

Station: Panel Prep and Assembly

Process: select panel, use crane to place panel onto conveyor, drill and tap holes as necessary, place components onto panel and secure with hardware using powered torque drivers

Last Updated: 2025-09-26 11:47:19

Signs: PPE areas defined by yellow floor tape

Barriers:

Other Controls: PPE, crane inspection per shift

Temperature: 71 °F

Noise: 64 dB

Dust: 0

Vapors/Mists: 0

Poor Lighting: 0

Work Alone: 0

  • crane operator:
    Must be qualified crane and hoist operator
  • Station OJT:
    per station checklist
  • General Safety Training:
    For associares working in higher risk areas
  • Chemical: Isopropyl Alcohol
    Secondary Container: Yes
    SDS on File: Yes
    SDS Link: View SDS
  • Chemical: Loctite tap Magic
    Secondary Container: No
    SDS on File: Yes
    SDS Link: View SDS
  • Tool Description: crane and hoist
    Tool Inspection: inspected start of each shift
  • Tool Description: Drill Press
    Tool Inspection: Daily visual
  • Tool Description: Powered torque tools
    Tool Inspection: Daily visual

Personal Protective Equipment (PPE)

Eye Protection Head Protection Hearing Protection
✔ Safety Glasses w/ Side Shields
 ✔ Type 2 Class G
Comments: when using overhead crane
Hand Protection Foot Protection Respiratory Protection
No hand protection fields defined ✔ Steel/Composite Toe
Electrical Protection

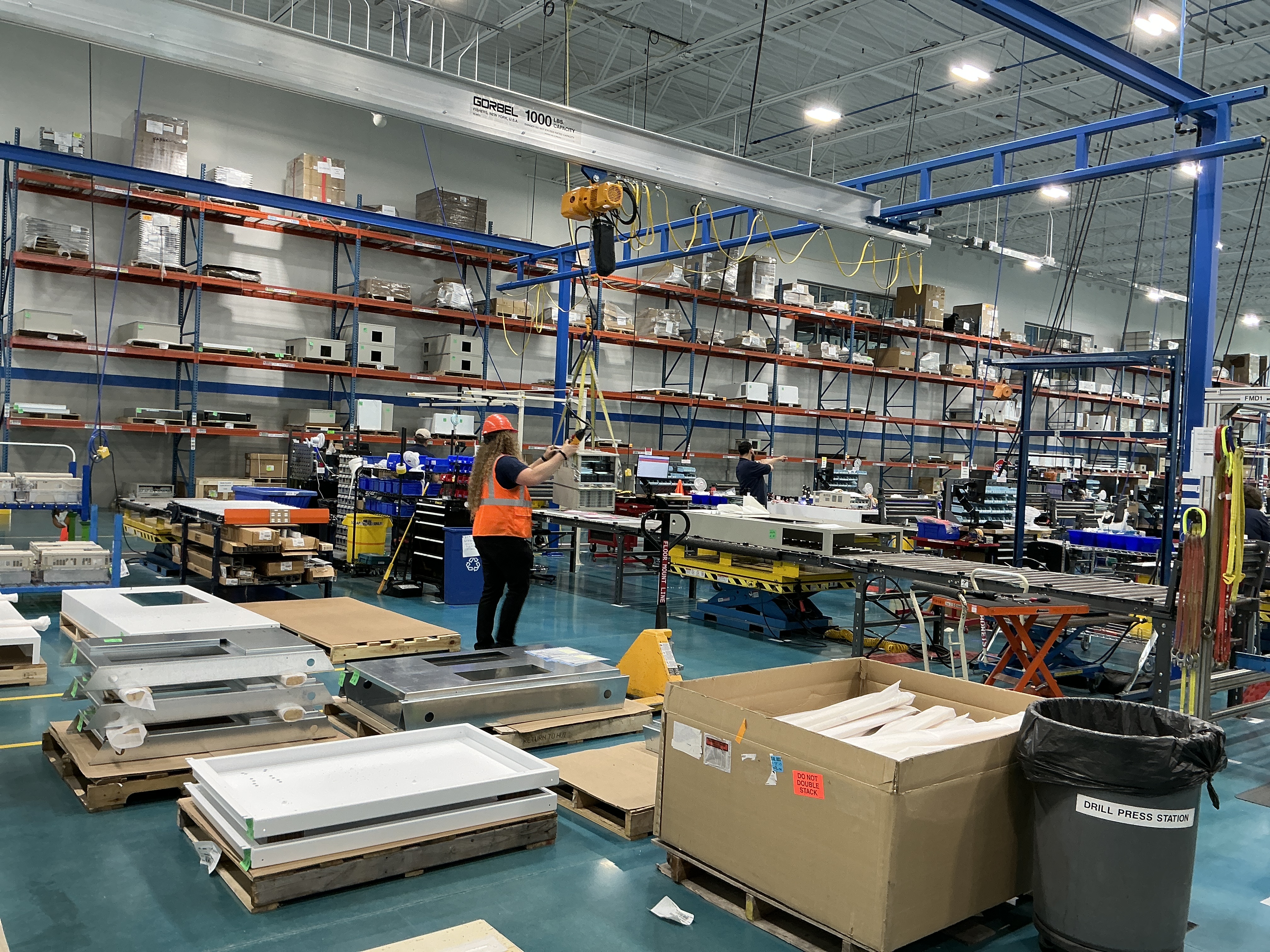

Task: Using crane to lift panels, drives, and heavy components

Description: select appropriate rigging, attach rigging, left about 2 inches to make sure lot is secure, move load to conveyor, lower load, and remove rigging from component

Task Image

Created: 2025-08-11 | Updated: 2025-08-11

Associated Hazards:
  • Category: Struck-by, Struck-against
    Description: improperly secured load could fall
    Severity: 5, Likelihood: 2, Score: 10
    Control: 0

    Created: 2025-08-11 | Updated: 2025-08-11

Ergonomic Assessment

Job Hazard Score: 9.00

Hazard Category: Low

Time on Task: 20-40 hours

Body Part Posture Force Duration Frequency
Left Wrist Wrist Extended
✔ Yes - Extended 		✖ No - Pinch Grip or Finger Press ≥ 2 lbs or Power Grip ≥ 10 lb ✖ No - ≥ 10 sec ✖ No - ≥ 30/min
Wrist Flexed
✖ No - Flexed
Wrist Radial Deviation
✔ Yes - Radial Deviation
Wrist Ulnar Deviation
✖ No - Ulnar Deviation
Right Wrist Wrist Extended
✖ No - Extended 		✖ No - Pinch Grip or Finger Press ≥ 2 lbs or Power Grip ≥ 10 lb ✖ No - ≥ 10 sec ✖ No - ≥ 30/min
Wrist Flexed
✖ No - Flexed
Wrist Radial Deviation
✔ Yes - Radial Deviation
Wrist Ulnar Deviation
✖ No - Ulnar Deviation
Left Elbow Elbow Extended
✖ No - Extended 		✖ No - ≥ 10 lb ✖ No - ≥ 10 sec ✖ No - ≥ 2/min
Elbow Rotated
✔ Yes - Rotated
Right Elbow Elbow Extended
✖ No - Extended 		✖ No - ≥ 10 lb ✖ No - ≥ 10 sec ✖ No - ≥ 2/min
Elbow Rotated
✔ Yes - Rotated
Left Shoulder Shoulder Arm Raised
✖ No - Arm Raised 		✖ No - ≥ 10 lb ✖ No - ≥ 10 sec ✖ No - ≥ 2/min
Shoulder Arm Behind
✖ No - Arm Behind
Shoulder Shrugged
✖ No - Shrugged
Right Shoulder Shoulder Arm Raised
✖ No - Arm Raised 		✖ No - ≥ 10 lb ✖ No - ≥ 10 sec ✔ Yes - ≥ 2/min
Shoulder Arm Behind
✖ No - Arm Behind
Shoulder Shrugged
✖ No - Shrugged
Neck
Postures Force Duration Frequency
Neck Extended
✖ No - Extended 		✖ No - ≥ 2 lb ✖ No - ≥ 10 sec ✔ Yes - ≥ 2/min
Neck Flexed
✔ Yes - Flexed
Neck Sideways
✔ Yes - Sideways
Neck Twisted
✖ No - Twisted
Back
Postures Force Duration Frequency
Back Extended
✖ No - Extended 		✖ No - ≥ 25 lb ✖ No - ≥ 10 sec ✖ No - ≥ 2/min
Back Flexed
✔ Yes - Flexed
Back Sideways
✖ No - Sideways
Back Twisted
✖ No - Twisted
Back Unsupported
✖ No - Unsupported
Legs
Postures Force Duration Frequency
Legs Kneeling
✖ No - Kneeling 		✖ No - ≥ 10 lb ✖ No - ≥ 30% of the day ✖ No - ≥ 2/min
Legs Squatting
✖ No - Squatting
Legs Unsupported
✖ No - Unsupported
Ergonomic Stressors
Stressors
Vibration Low Temperature Compression Impact
✖ No - Exposure to vibration ✖ No - Exposure to cold temperatures ✖ No - Compression from tool or surface ✖ No - Exposure to sudden impacts
